The Quadro P2200 is the perfect balance of performance, compelling features, and compact form factor delivering incredible creative experience and productivity across a variety of professional 3D applications. It features a Pascal GPU with 1280 CUDA cores, large 5 GB GDDDR5X on-board memory, and the power to drive up to four 5K (5120x2880 @ 60Hz) displays natively. Accelerate product development and content creation workflows with a GPU that delivers the fluid interactivity you need to work with large scenes and models.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
Specifications
|
Memory Size |
5 GB GDDR5x |
|
Memory Interface |
160-bit |
|
Memory Bandwidth |
up to 200 GB/s |
|
CUDA Cores |
1280 |
|
System Interface |
PCI Express 3.0 x16 |
|
Max Power Consumption |
75W |
|
Energy Star Enabling |
Yes |
|
Thermal Solution |
Ultra-quiet active fansink |
|
Form Factor |
112 mm H × 200 mm L
Single Slot, Full Height |
|

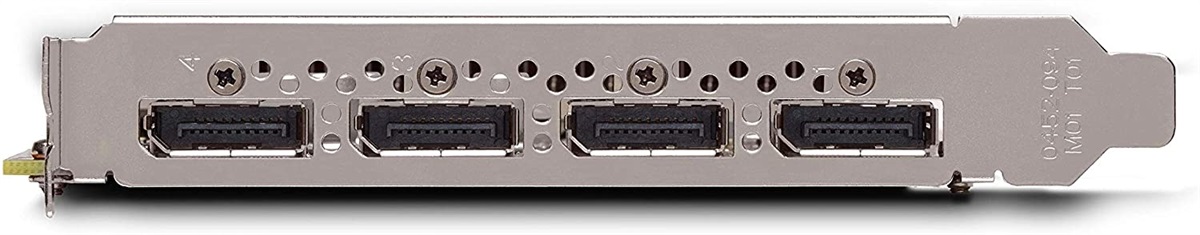

Display Connectors |
4 × DP1.4 |
|
Max Simultaneous Displays |
4 Direct
4 DP 1.4 Multi-Stream |
|
DisplayPort 1.4 |
Yes |
|
DisplayPort with Audio |
Yes |
|
DVI-D Single-Link Connector |
Via included adapters |
|
Max DP 1.4 Resolution |
5120 × 2880 @ 60 Hz |
|
Maximum DVI-I DL Resolution |
2560 ×1600 @ 60 Hz |
|
Maximum DVI-I SL Resolution |
1920 × 1200 @ 60 Hz |
|
HDCP 2.2 Support |
Yes |
|
Graphics APIs |
Shader Model 5.1, OpenGL 4.5, DirectX 12, Vulkan 1.0 |
|
Compute APIs |
CUDA, DirectCompute, OpenCL™ |
NVIDIA nView™ Desktop
Management Software Compatibility |
Yes |
|
Mosaic Mode |
Yes |
|
3D Stereo Support |
Yes |
|
NVIDIA GPUDirect™ Support |
Yes |
|
Quadro Sync II Compatibility |
No |
|
Stereo Connector |
No |
|
Package Content |
1 × DP to DVI (SL) adapter
1 × Quick Installation Guide
|
